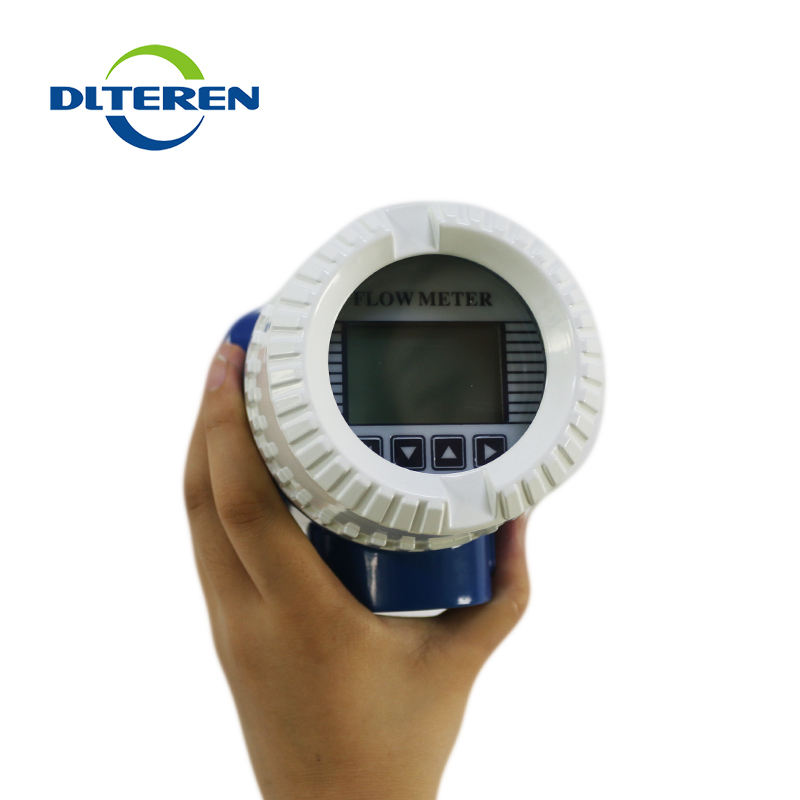

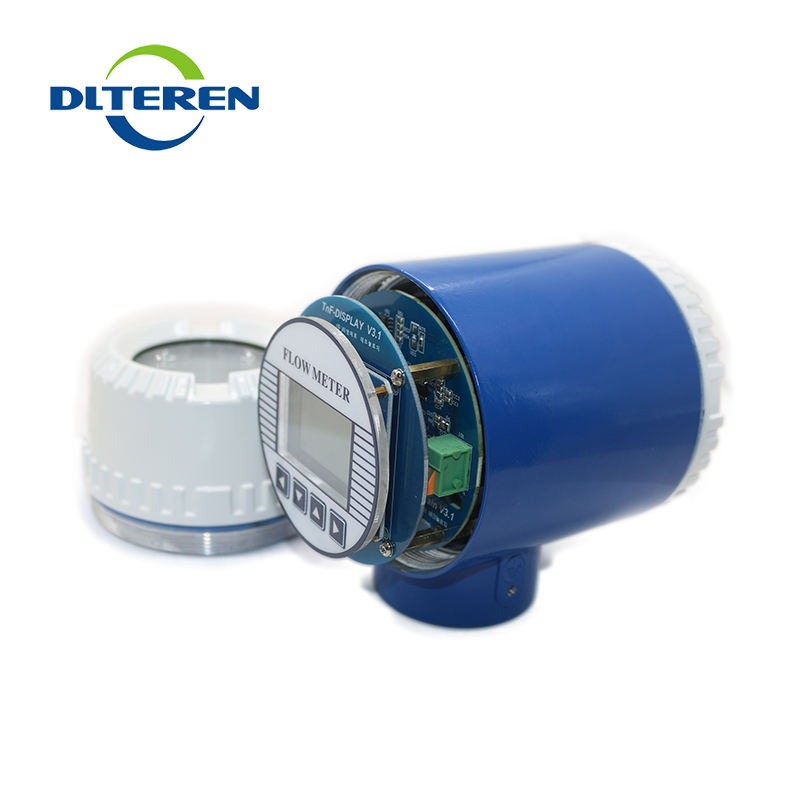

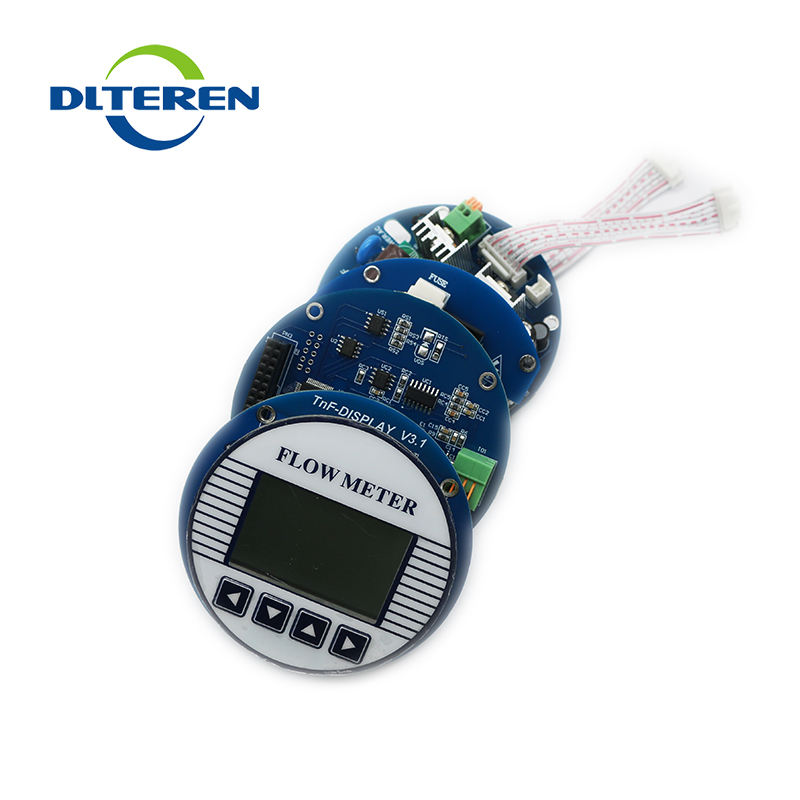

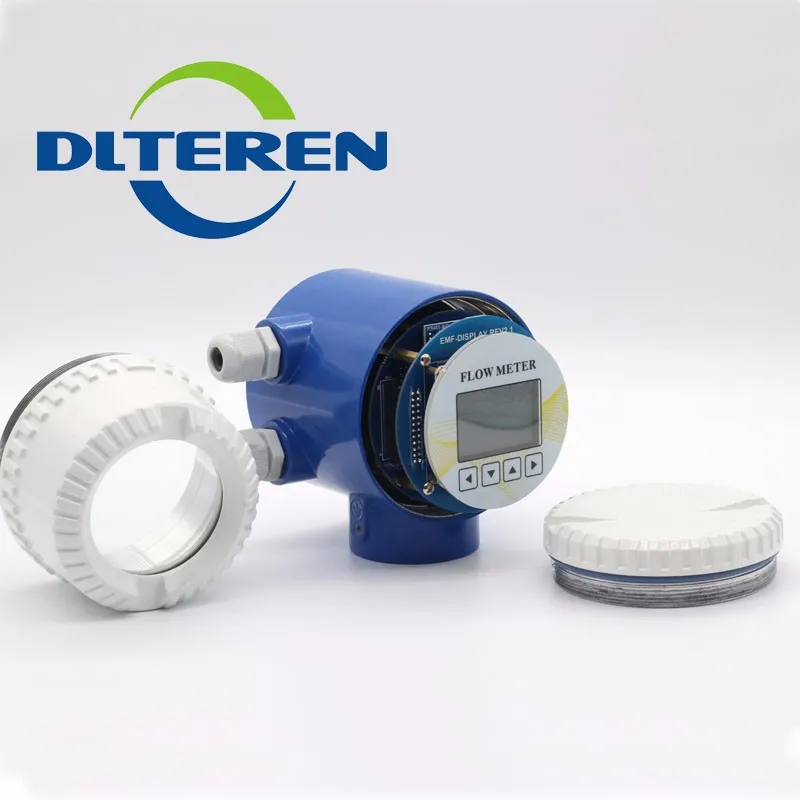

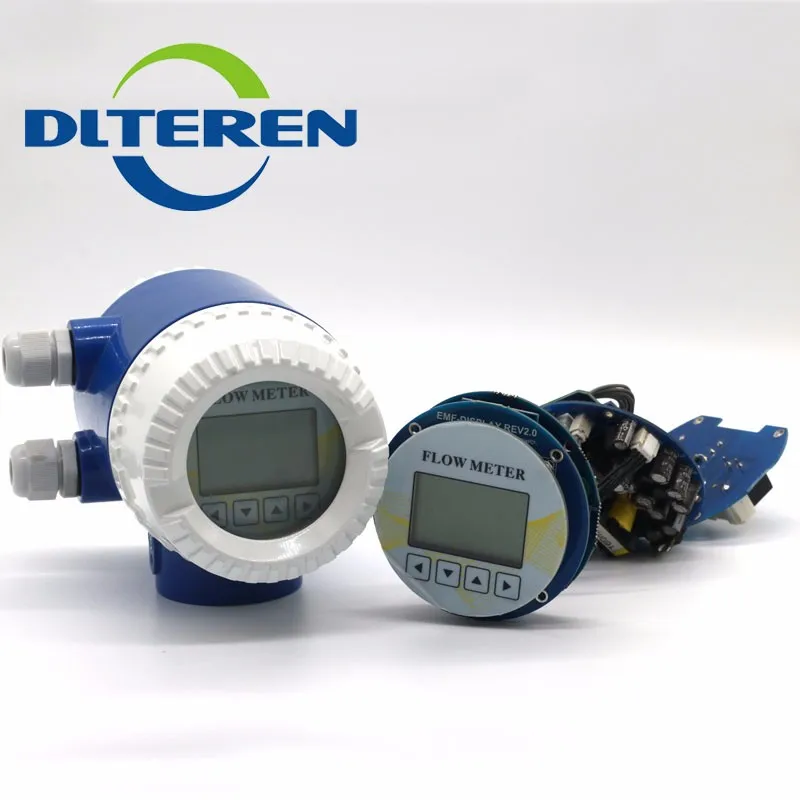

Teren Electromagnetic flow meter Convertor pcb Transmitter
Electromagnetic flowmeters for the accurate flow measurement of any conductive fluid, ideally suited to water and waste water treatment plants, mining and general industry.
Comprehensive range of electromagnetic flowmeters to suit applications from water to abrasive and corrosive process fluids.
* The FNS550 uses the well proven electro-magnetic method of measurement, which applies Faraday's Law as the principle of operation. This technique features a straight through section of pipe with no obstruction to restrict flow and no moving parts to wear or break.
* Highly accurate. 0.2 % of rate from 0.5 to 10 meters per second.
* 32 character display standard, displays rate, total and diagnostic messages.
* Comprehensive output options, Include multiple analogue, relay, digital and serial outputs.
* Display guides operator with menu prompts during configuration.
* Self calibrating system with in-field verification.
* Self monitoring and diagnostic functions.
Constantly monitors system integrity and measurement validity. Diagnostics can be linked to outputs for diagnostic alarm.
* Combined type flow transmitter
* Integral key pad standard. All configuration is performed via front keypad. No plug-in programmer required.
|

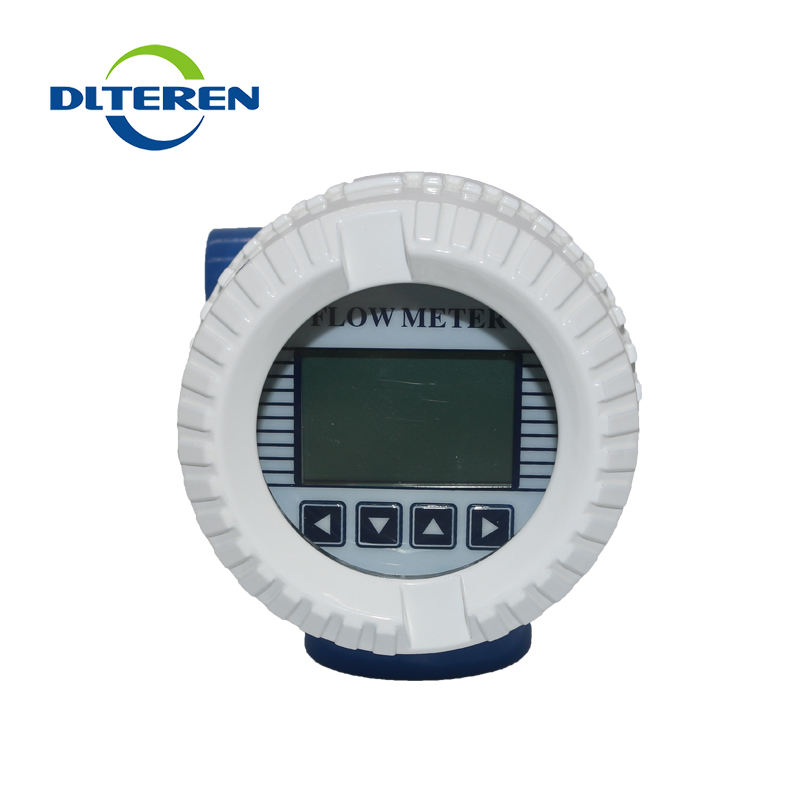

Display
|
32 character (2 line x 16 character) alpha-numeric backlit LCD. Displays rate of flow, total flow, alarms, analogue outputs and relay enunciators. Displays text prompts in programming mode.
|
||
|
Configuration
|
All functions are accessible via 4 button integral key pad. A logical 4 group menu system with display prompts ensures ease of configuration.
|
||
|
Outputs
|
• 24VDC Power Output
• 1 x 4-20 mA Output Fully isolated. (max. load 750 ohms) • 2 x relays with change over contacts. Hi / Low alarm • 2 x Digital open collector output • 1 x RS422/RS232 (Optional) |
||
|
Power supply
|
24VDC. 85-265 VAC 50/60Hz. (* 20%). Power consumption, 25 VA.
|
||
|
Enclosure
|
Rated IP65 Combined type
|
||
|
Accuracy
|
*0.2% of rate or *0.001 meters (*0.003 feet) per second, whichever is greater, from 0.5 to 10 meters (1 - 65 to 33 feet) per second.
|
||
