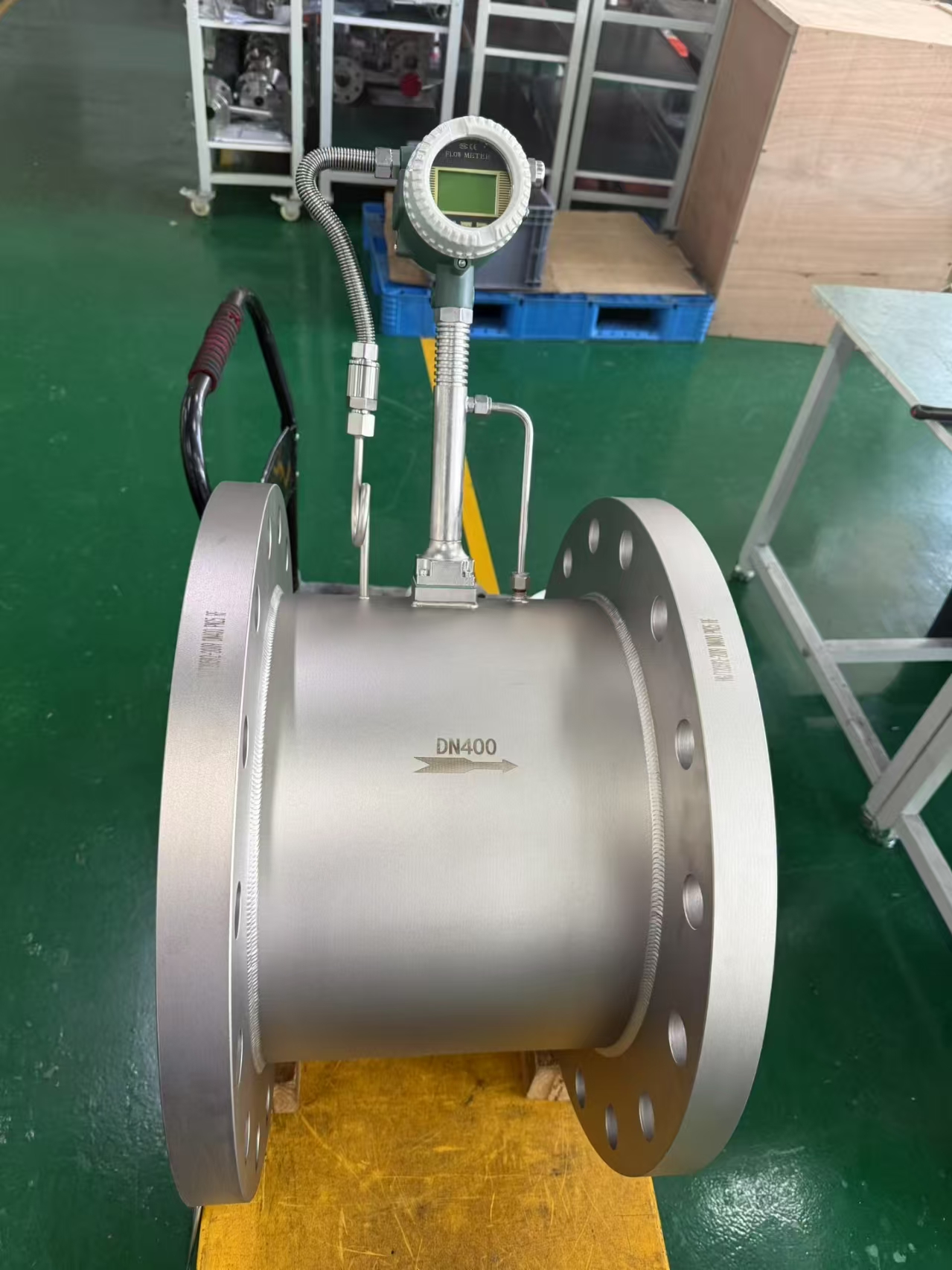

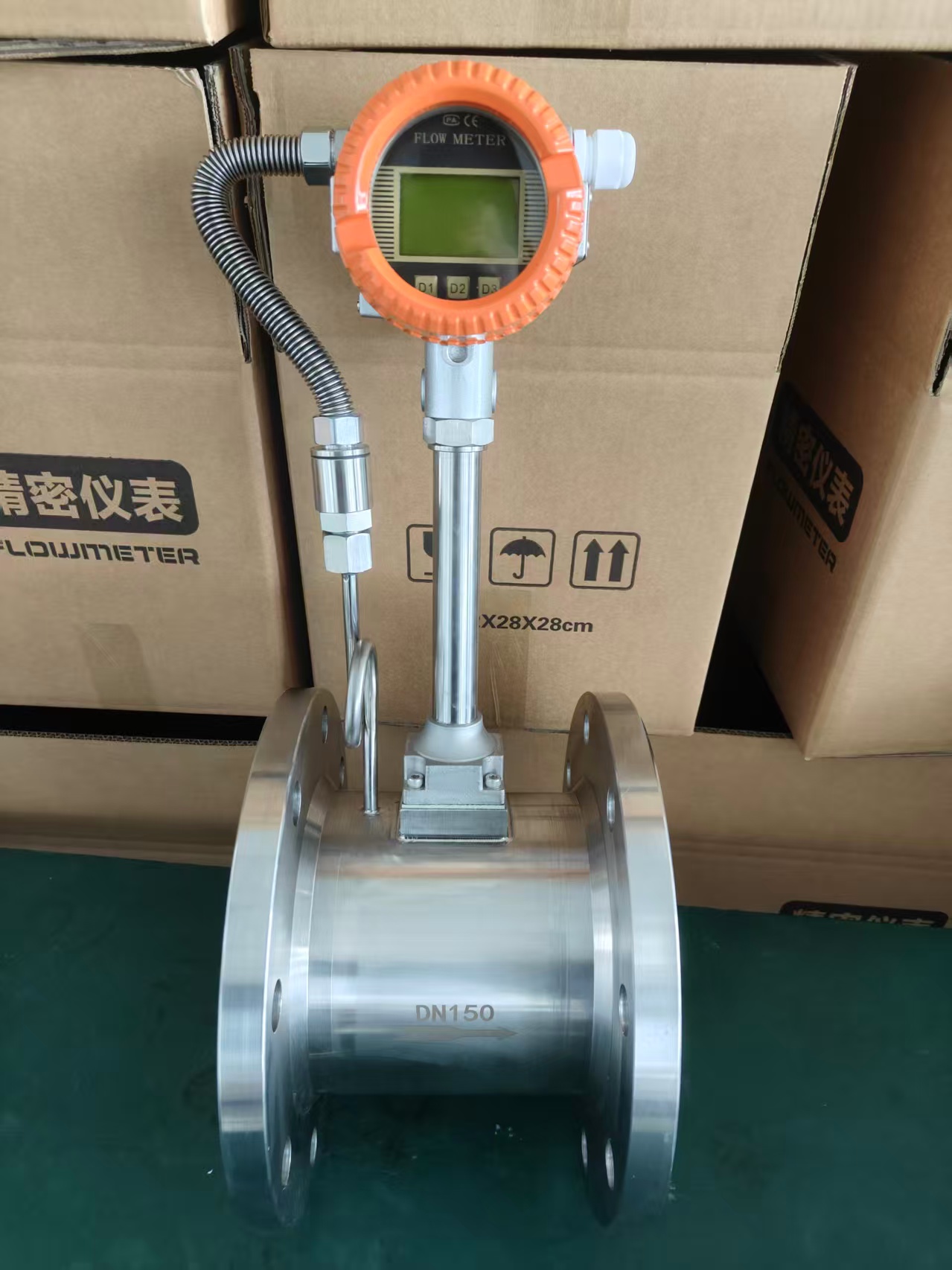

Technical Parameters
| Nominal diameter (mm) |
15,20,25,40,50,65,80,100,125,150,200,250, 300 (300~1000 insertion) |
| Nominal pressure (MPa) |
DN15-DN200 4.0 (>4.0 Agreement supply) DN250-DN300 1.6 (>1.6 Agreement supply) |
| Medium temperature (℃) |
Piezoelectric: -40~100,-40~250,-40~330 Capacitive: -40~400,-40~500 (Agreement supply) |
| Body material | Stainless steel |
| Allowable vibration acceleration |
Piezoelectric: 0.2g Capacitive: 1.0~2.0g |
| Accuracy | ±1%R,+1.5%R; (Insertion:±2.5%R) |
| Range | 1: 6 ~ 1: 25 |
| Supply voltage | Sensor: DC 24V; Battery powered: 3.6V battery |
| Output signal |
Square wave pulse (excluding battery-powered type): high level ≥ supply voltage minus 1V, low level ≤ 1V Current: 4~20mA Optional: RS485 |
| Pressure loss coefficient | Meet the JB/T9249 standard Cd ≤ 2.4 |
| Explosion-proof class | EX ia llC T4 Ga |
| Intrinsic safety parameters | Ui= 28VDC, li=100mA, Pi=0.657W, Ci=0.μF, Li=0mH |
| Protection class | IP65~IP68 |
| Environmental conditions |
Temperature -20℃~55℃, Relative humidity 5%~90%, Atmospheric pressure 86 ~ 106kPa |
| Transmission distance |
Three-wire pulse output type: ≤300m, two-wire standard current output type (4~20mA) ≤1500m; load resistance ≤500Ω RS485≤1200m. |
