Ultrasonic level meter

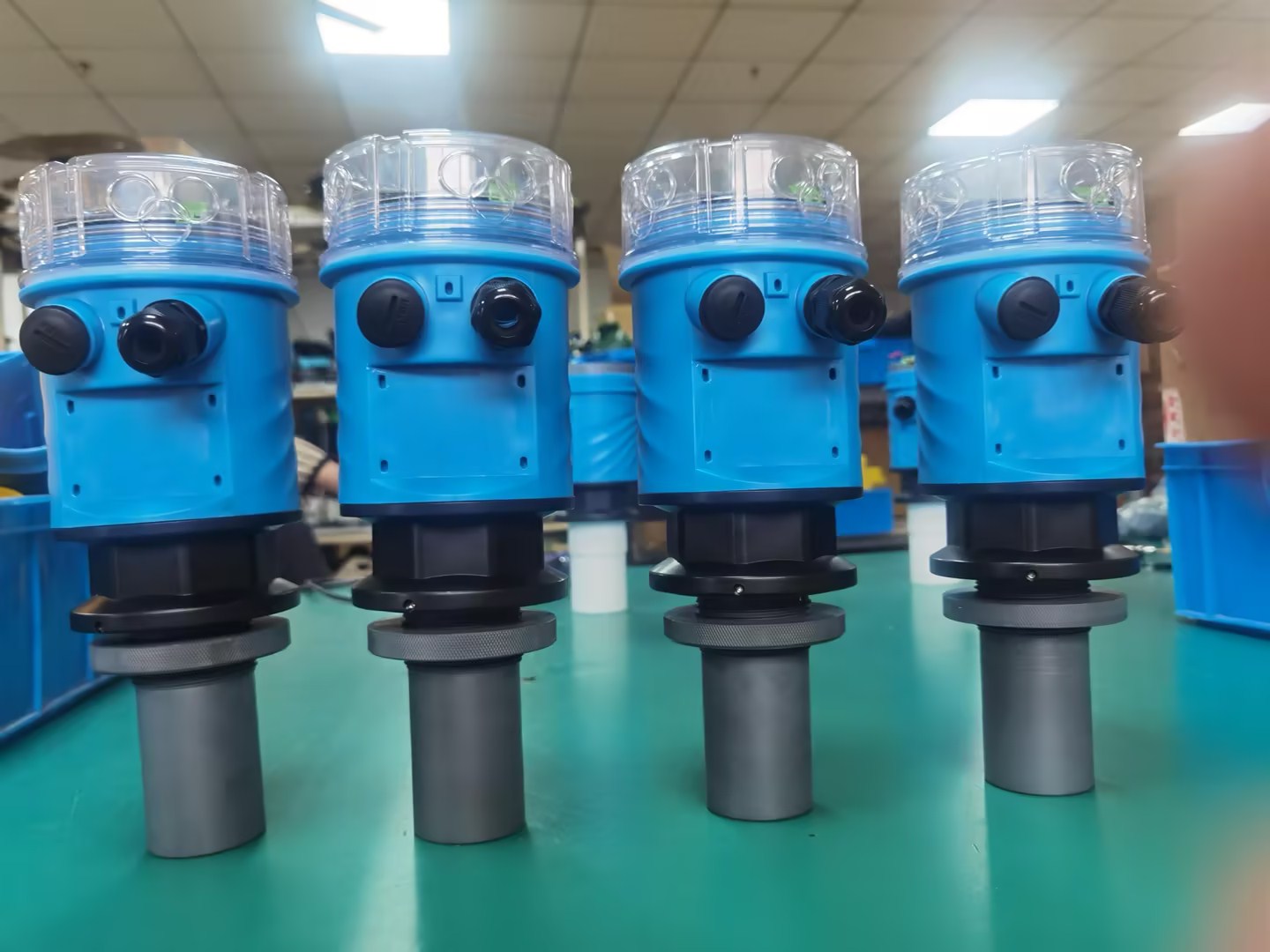

DTI-K ultrasonic level meter

Features:

• Display the liquid level and distance;

• Automatic detection of on-site electrical interference, and interference suppression;

• Internal integrated temperature sensor, and real-time temperature compensation for sound velocity;

• Support 4-20 mA current simulation, RS485 communication test, and other functions;

• Use the keys to carry out on-site parameter setting;

• All input and output lines have the overvoltage and overcurrent protection;

• Non-contact measurement, and long service life;

Measuring Range	0.15m~2m, 0.3m~5m, 0.35m~10m, 0.5m~15m, 0.8m~20m
Blind Zone	0.15m~0.8m (Depend on the measuring range)
Measuring Precision	±0.3%FS* (Standard conditions*)
Resolution	1mm
Instrument Display	Display liquid level, distance and relay status
Supply Voltage	DC12V~36V / 22mA DC12V~36V / 70mA or AC100V～240V / 5W
Analog Output	4~20mA loop current output (Load < 400Ω) 4~20mA/ bit12 current output (Load< 5000)
Digital Output	RS485 /Modbus-RTU protoco
Transmitter Material	ABS
Probe Material	ABS / ETFE / PTFE
Electrical Interface	PG11 Interface/PG11 Interface

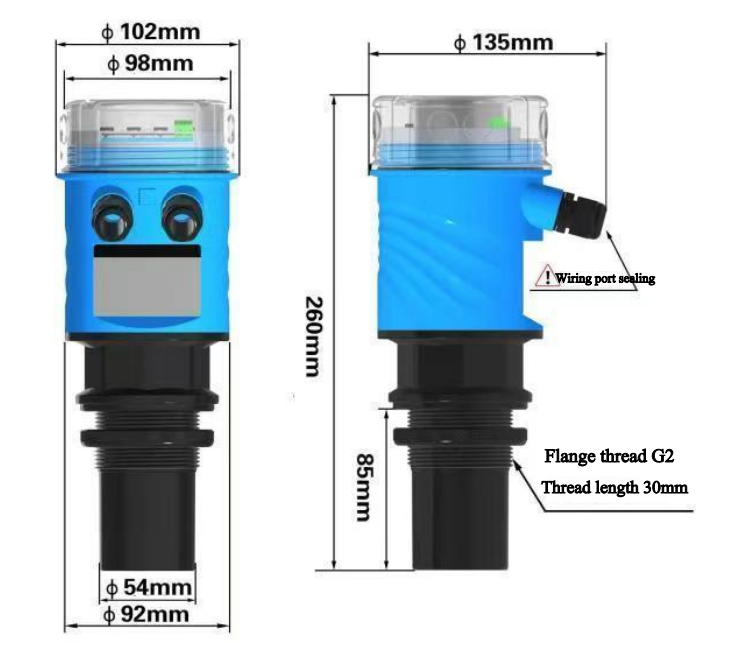

Process Interface	G2"( Customize G1 / 2½"NPT screw thread)
Environmental Temperature	-35℃~+70℃ (Please emphasize the temperature when placing an order if the temperature below -20℃)
Process Temperature	-40℃ ~ +80℃
Waterproofing Grade	IP65/IP68
Process Pressure	0.8~3bar/altitude < 2,000 m
