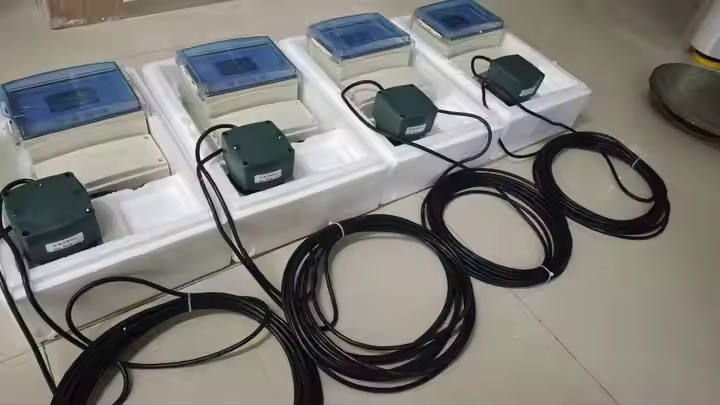

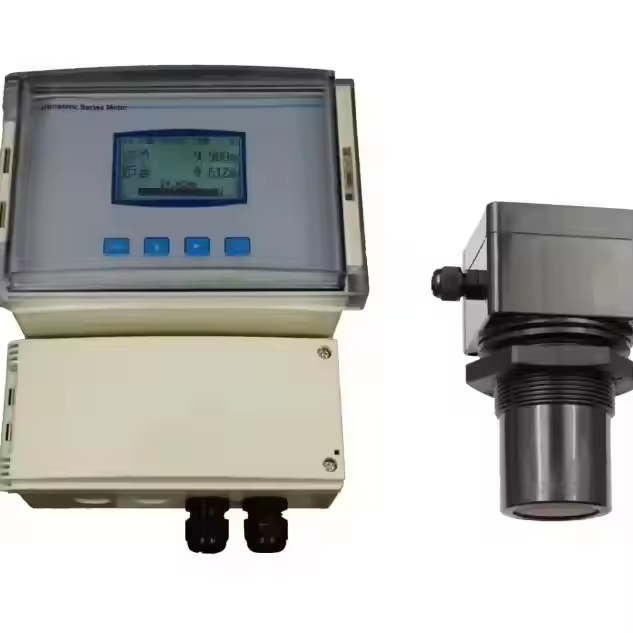

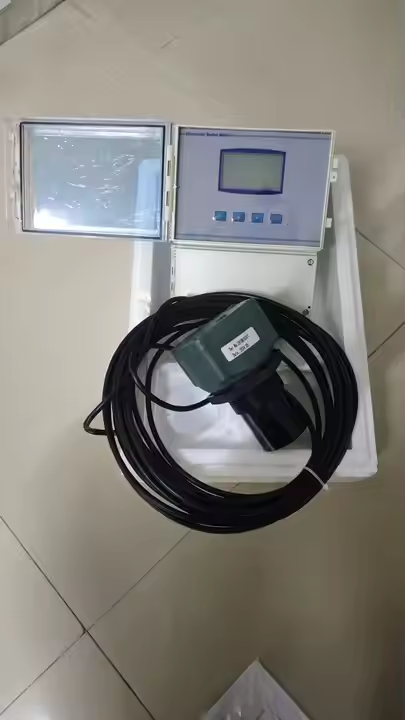

DTI-UTG21-PR Split Type 4-Wire MUltrasonic Level Meter with RS485 4-20mA Output AC220V Range 10 Meters
|
System
|
Integrated 4-wire system
|
|
|
|
Measurement range
|
0~5m, 0~10m, 0~15m, 0~20m
|
|
Block dist.
|
0.35~0.6m
|
|
|
Precision
|
±0.3%FS* (standard conditions *)
|
|
|
Resolution
|
±2mm
|
|
|
|
Supply voltage
|
DC12~36V / AC 85~264V
|
|
Maximum current
|
50mA~100mA
|
|
|
Ripple wave requirement
|
Less than ±200mV
|
|
|
|
Simulated current
|
Load 500Ω
|
|
Digital interface
|
Rs485 / ModBus-RTU
|
|
|
|
Process interface
|
G1 1/2” or G2”
|
|
Electrical interface
|
PG11
|
|
|
|
Transmitter
|
ABS
|
|
Probe
|
Ordinary waterproof ABS / anti-corrosion ETFE
|
|
|
Flange
|
Ordinary waterproof ABS/ anti-corrosion ETFE
|
|
|
|
|
-20℃~+60℃. Liquid crystal display is limited if it is lower than -20℃. If outdoor instrument is exposed to sunlight directly, add ultraviolet-proof protective cover.
|
|
Waterproof grade
|
IP65
|
|
|
|
Process temperature
|
-40℃~+90℃, high-temperature probe shall be used in case of over 70℃.
|
|
Process pressure
|
0.8~3bar or 0.08~0.3Mbar abs / below 3000 meters altitude.
|
|
|
Probe Cable Length
|
RVVP 4*0.3 / less than 200m
|
|
