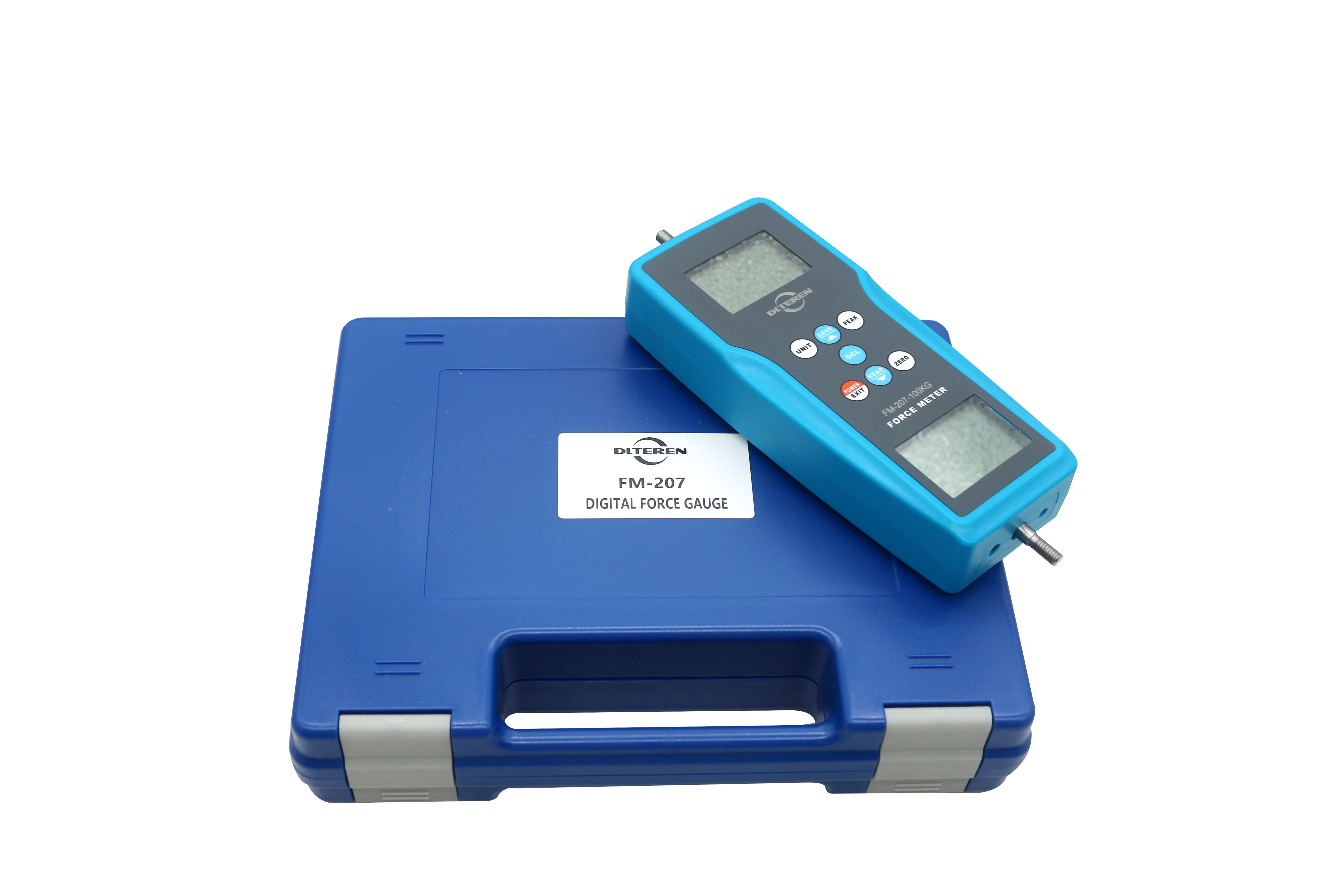

FM-207-100k Digital LCD Display Push Pull Force Gauge with Units Kgf/gf/N/Lbf
Application:
The digital force gauge is a kind of simple and convenient functional instrument for high-accuracy push force and pull force test.It is widely used in electronics,building hardware,textile,auto parts
Features:
* High accuracy and high resolution.
* Digital display with no guessing or errors.
* With 4 measurement unit for selection and conversion, N, kg, lb, g.
* With peak value hold function.
* With data memory function, can memorize 99 groups of data.
* With 10 minutes auto power off and manual power off.
* Power can be supplied by either alkaline battery or 5V DC power.
* Use USB/RS-232 data output to connect with PC.
|
Force Range
|
±100 kgf
|
|
±980 N
|
|
|
±220 Lbf
|
|
|
Resolution
|
0.01 kgf
|
|
0.1 N
|
|
|
0.1 Lbf
|
|
|
Accuracy
|
±0.2% FS ±1 Digit
|
|
Unit
|
Kgf, gf, N, Lbf
|
|
Measurement State
|
Peak Value Measurement, Real Time Measurement
|
|
Display
|
2 Reversed 4 Digit LCD
|
|
Power Off
|
10 Minutes Auto Power Off, Manual Power Off
|
|
Backlight
|
Blue Backlight
|
|
Safe Load
|
150% FS ( Buzzer Alarm Over 110% FS )
|
|
Data Output
|
USB, Bluetooth
|
|
Power Supply
|
2 x 1.5 AA( UM-3 ) Battery or 5VDC Power Supply
|
|
Operating Conditions
|
Temperature: 0 ~ 40°C
|
|
Humidity: <80%
|
|
|
Surrounding
|
No Vibration Source or Corrosive Medium Around
|
|
Weight
|
390 g
|
|
Size
|
211mm x 80 mmx 36 mm
|
|

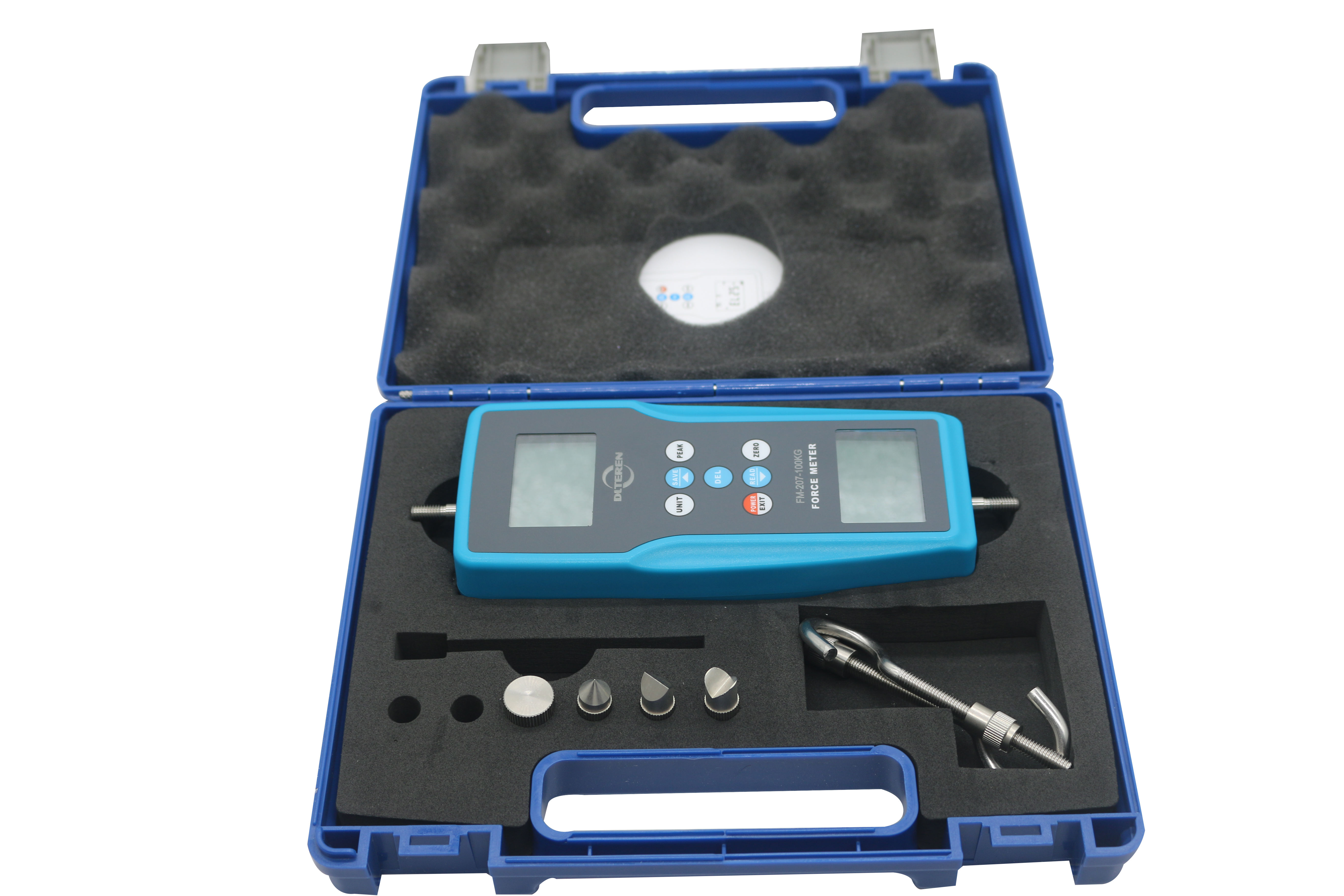

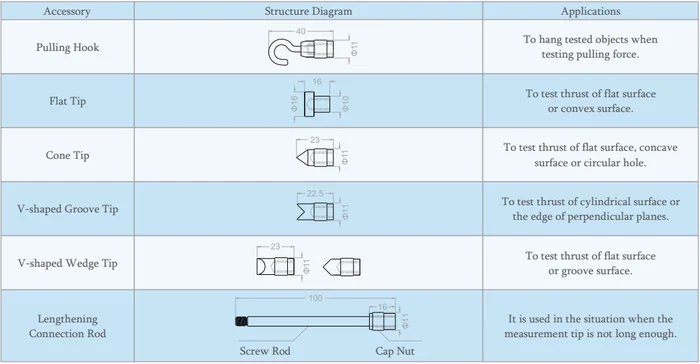

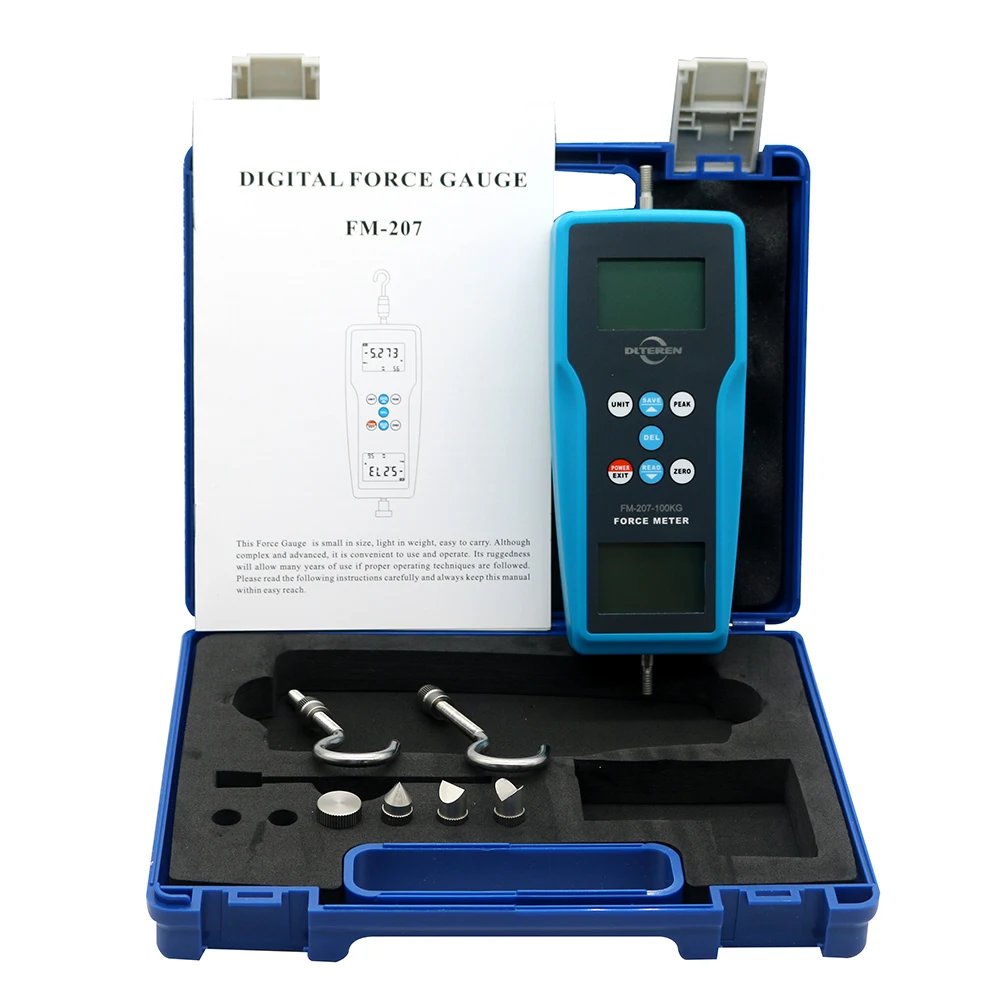

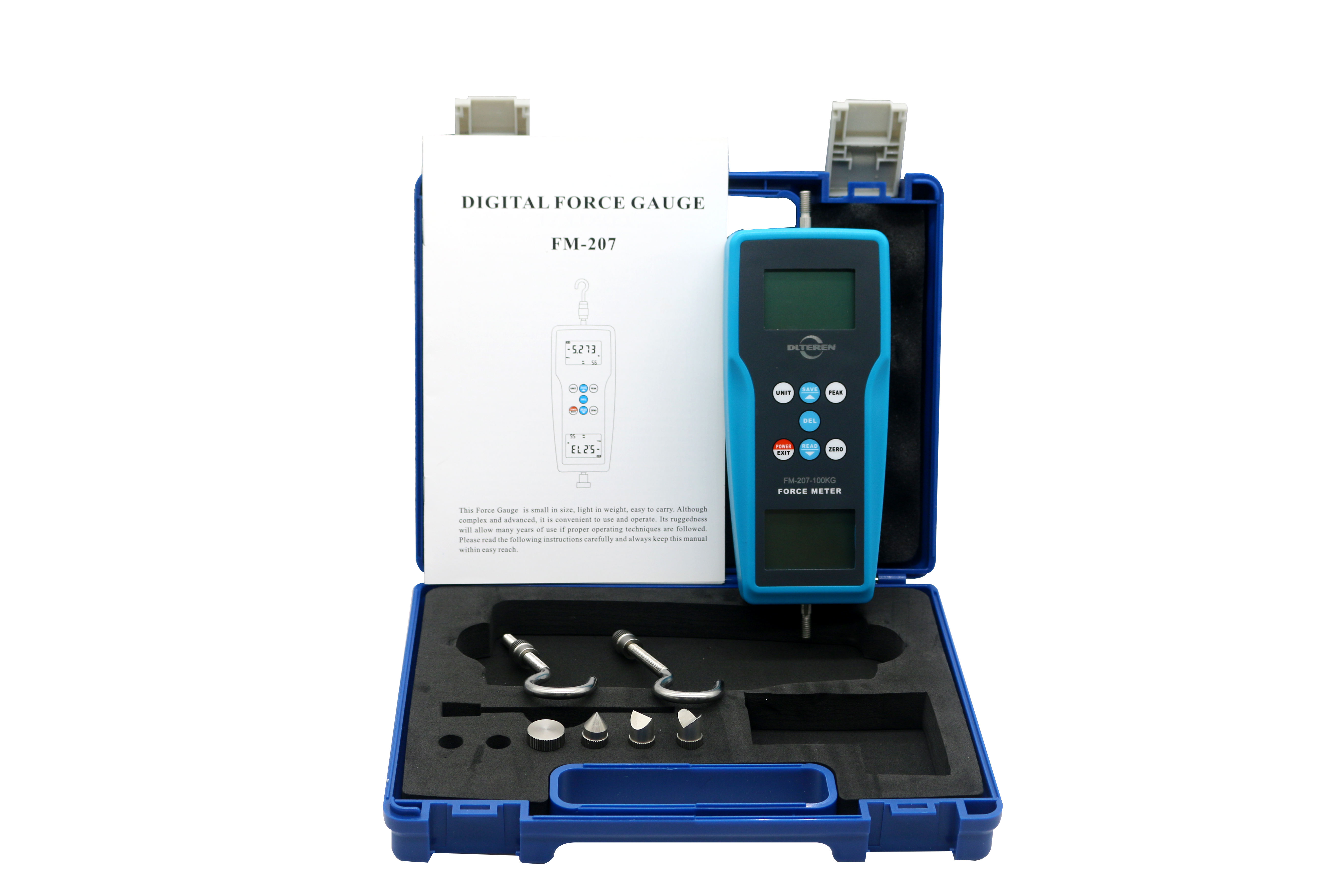

Standard Accessories
|
Digital Force Gauge
|
|
|
Pulling Hook
|
||
|
Flat Tip
|
||
|
Cone Tip
|
||
|
V-shaped Groove Tip
|
||
|
V-shaped Wedge Tip
|
||
|
Lengthening Connection Rod
|
Screw Rod
|
|
|
Cap Nut
|
||
|
Manual
|
||
|
Carrying Case
|
||
|
Optional Accessories
|
CD
|
|
|
USB Data Cable
|
||
|
Power Adapter
|
||
|
Force Gauge Stand
|
||
