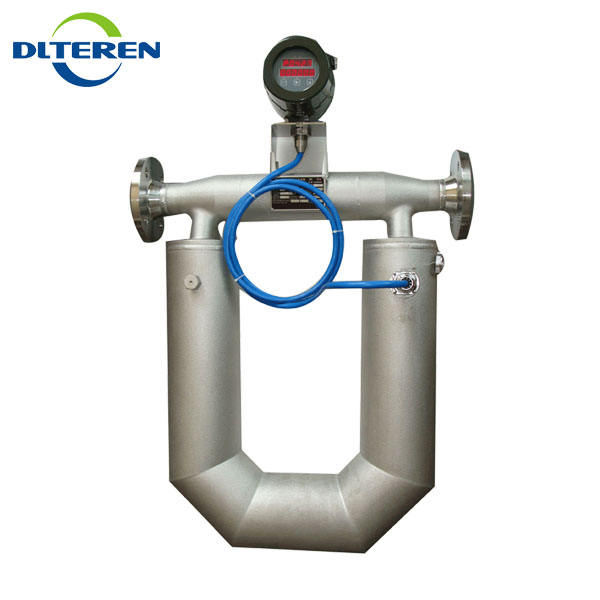

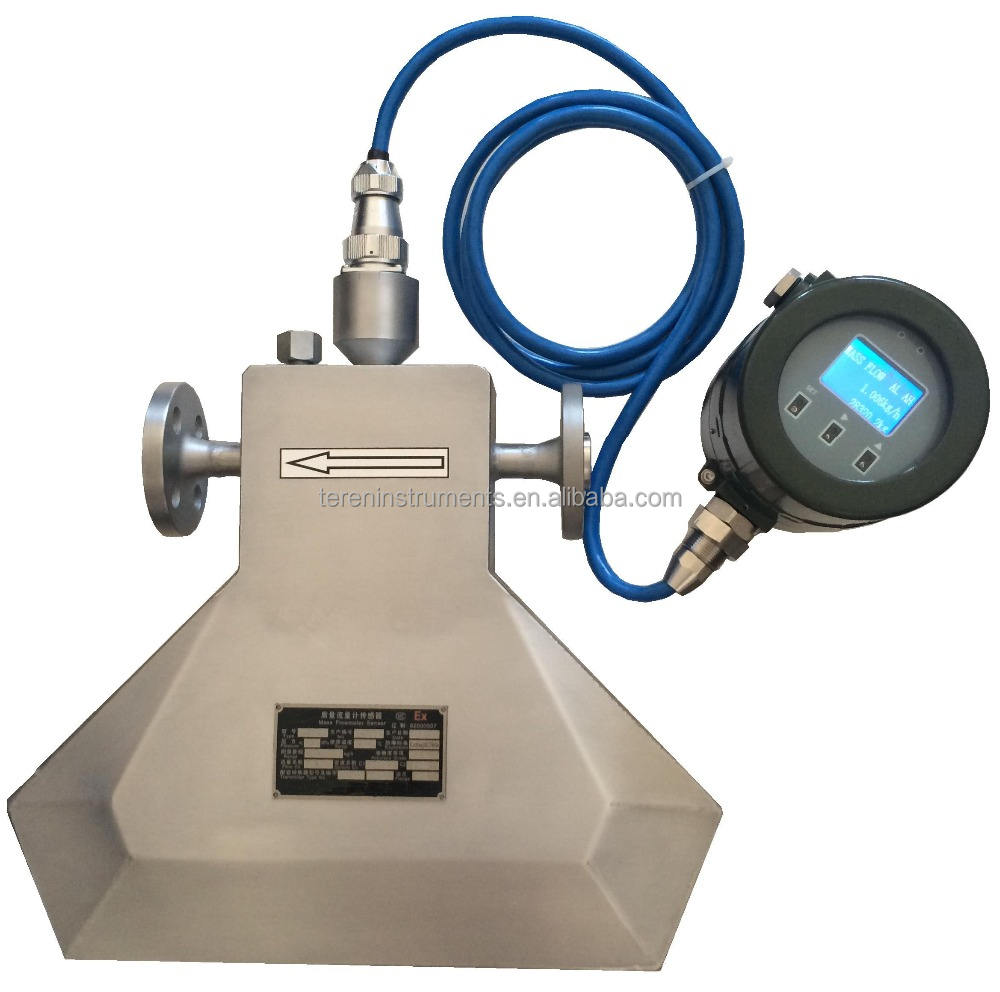

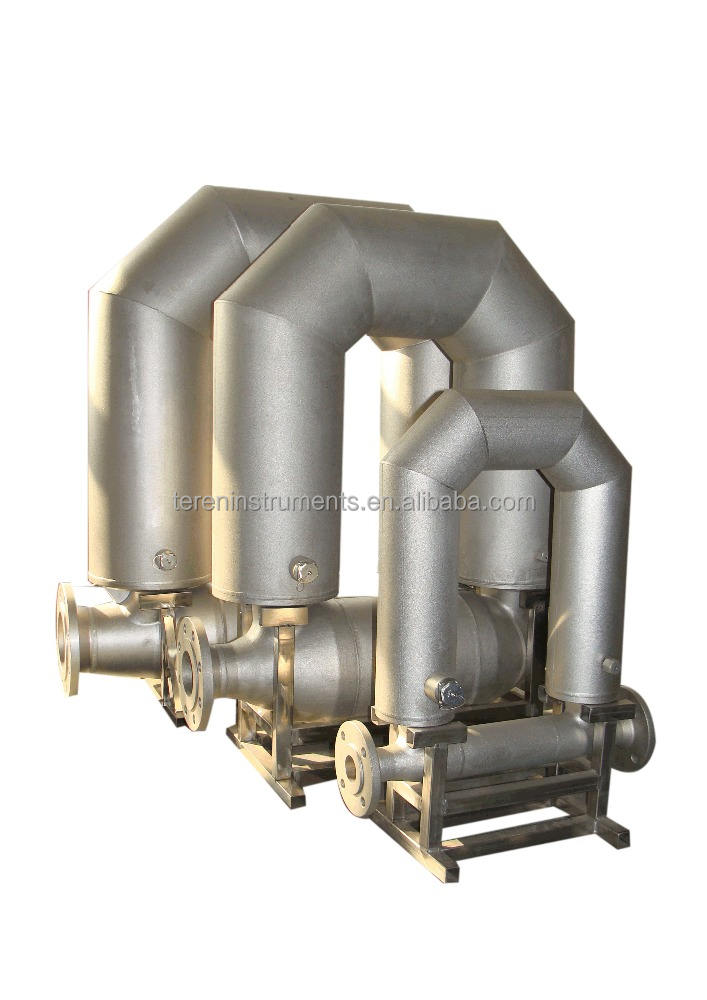

Teren DTI-CMF Coriolis Mass Flowmeter Liquid Flow Rate Meter Slurry Density Instruments

Working temperature of measured medium

-200℃~350℃,Standard form:-50~200℃Low temperature type:-200~200℃

Measurement display unit

mass flow:g/h,kg/h,t/h,g/m,kg/m,t/m

Volume flow:cm³/h,d m³/h,m³/h,cm³/m,d m³/m,m³/m

Density:kg/m³ or g/cm³,temperature:℃,K,℉

ambient temperature

-40~60℃

Texture of material

Measuring tube:316L ,Shell:304

Accuracy of liquid flow measurement

0.1%,0.15%,0.2%

Measurement range of liquid density

0.3~3.000g/cm³,measurement accuracy±0.002g/cm³

Temperature measurement range

-200~350℃ ,measurement accuracy:±1℃

communication

RS485,MODBUS  Agreement

output signal

0~10000Hz Pulse signal, flow signal, collector open circuit signal,
4~20mADCCurrent, Flow and Density Output Signals

Power supply

18~36VDC Power supply:7W(basic)85~265VAC Power supply:10W(additional)
