Ultrasonic Thickness Meter

Fast Delivery Ultrasonic Thickness Tester TM-8816 High Accuracy Thickness Tester

Fast Delivery Ultrasonic Thickness Tester TM-8816 High Accuracy Thickness Tester

Product description:
INQUIRY

Fast Delivery Ultrasonic thickness tester TM-8816 high accuracy Thickness Tester

TM-8816 Ultrasonic Thickness Meter Used for measuring thickness and corrosion of pressure vessels,chemical equipment,boilers,oil storage tanks,etc.in industries of petroleum, shipbuilding,power station,and machine manufacturing.

Features

* Using the latest high performance and low power consumption microprocessor technology.
* Automatic memory material code and sound velocity value, convenient to use.
* Use “USB data output” and “RS-232 data output” to connect with PC.
* Provide “Bluetooth ™ data output” choice.

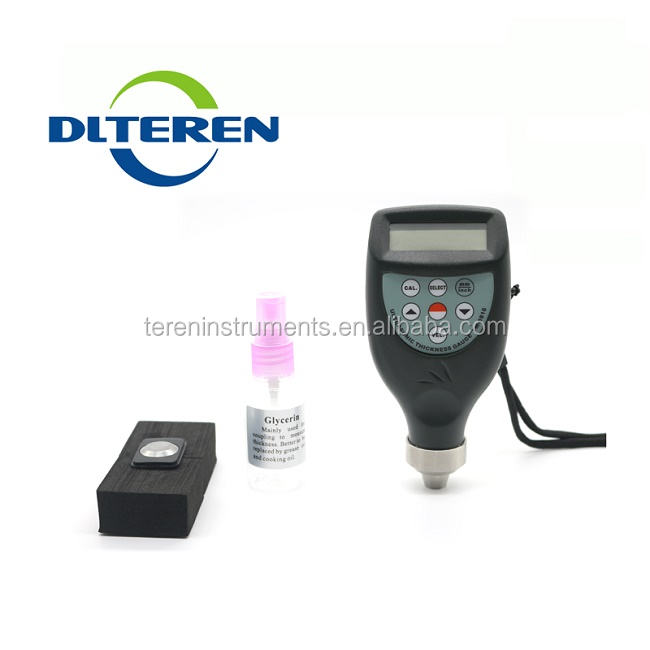

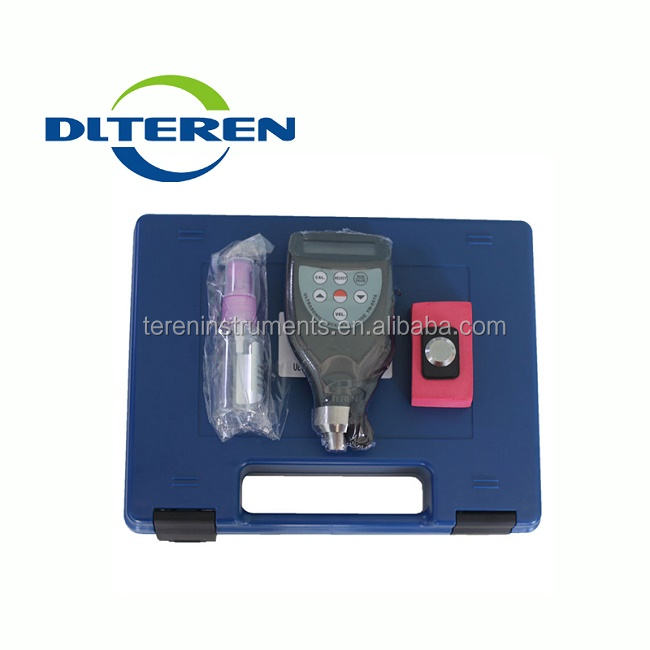

Standard Accessories:

1. Main Unit

2. 5MФ8 Standard Sensor

3. Coupling Agent

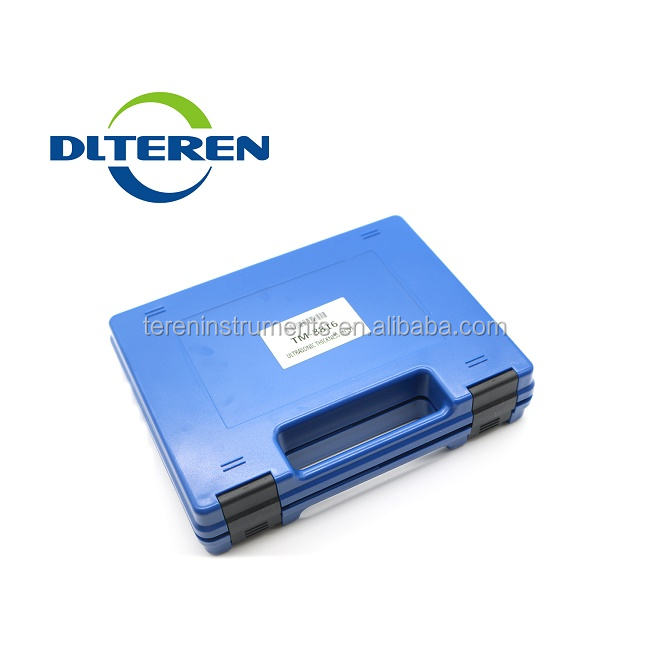

4. Carrying Case

5. Operating Manual
Optional Accessories:

1. USB, RS-232C data cable with software
2. Bluetooth data output with software

Technology Details

Item		Description
Display		4 Digit, 10 mm LCD
Operating Principle		Ultrasonic
Measuring Range (metric / Imperial)		1.0~200 mm / 0.04~8 inch
Battery Indication		Low Battery Indication
Sound Velocity		500~9990 m/s
Lower Limit Steel Pipes		Φ15x2.0mm Φ20 x 3.0mm determined bysensor
Calibration Block		Included
Resolution		0.1 mm (TM-8816C 0.01 mm)
Accuracy		± (0.5%n + 0.1)
Automatic memory material code & the value of sound velocity
Power off		Auto Power off & Manual Power Off
Operating Conditions		Temperature: 0~40 °C, Humidity: < 85 %RH
Power Supply		4 x 1.5 V AAA (UM-4) Battery
Dimensions		135 x 65 x 27 mm
Weight		120 g (Not Including Batteries)
