Features

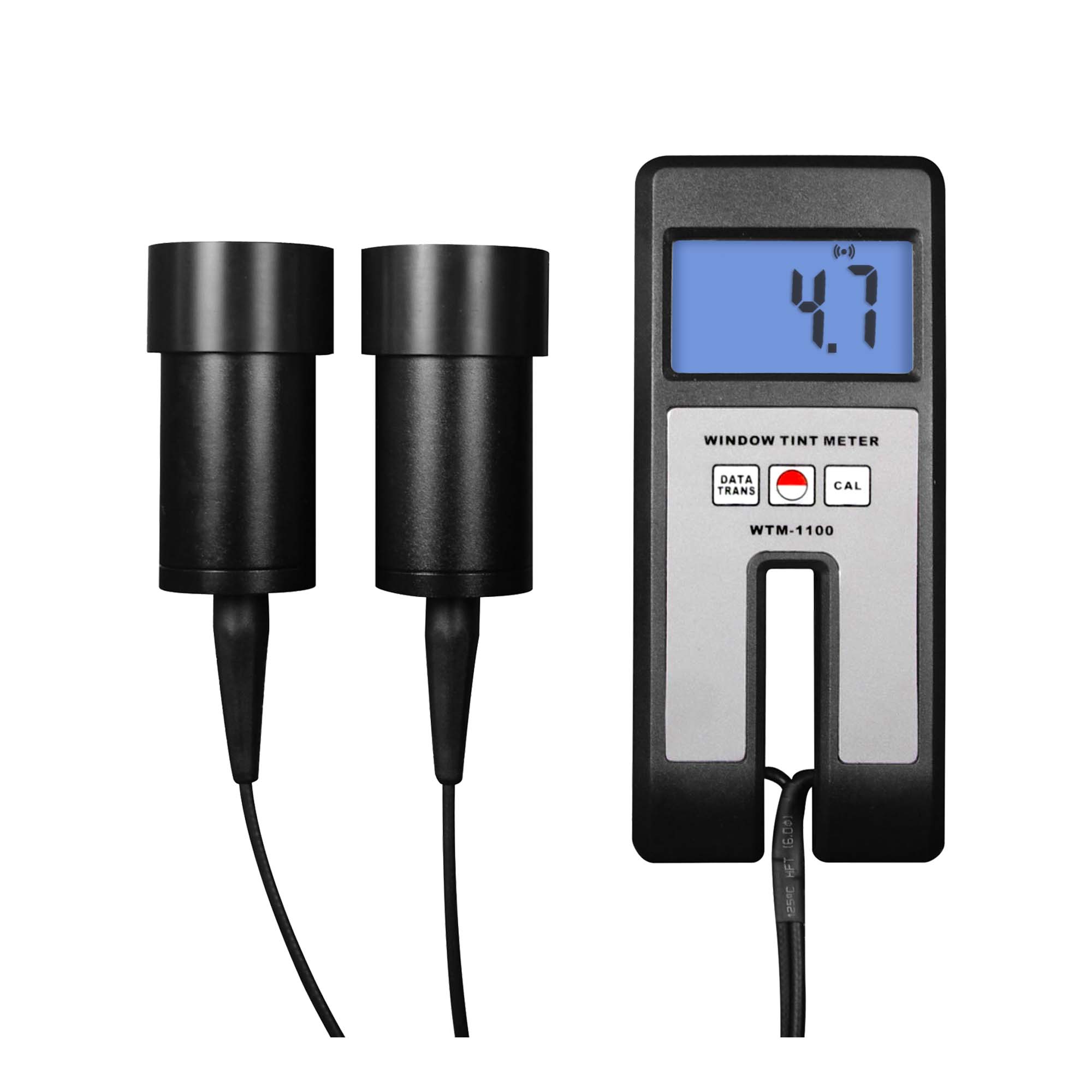

* This Window Tint Meter is a hand held device that measures the amount of light that passes through a window.
* Technology is designed in accordance with GB 2410-80, ASTM D1033-61, JIS k7105-81 and other standards.
* Digital display, wide measurement range, high resolution.
* Solid structure, small volume, light weight, exquisite, easy to carry.
* Single / Continuous measuring mode.
* Use USB data output to connect with PC.
* Provide Bluetooth data output choice.
Specifications
|
Model
|
WTM-1100
|
WTM-1000
|
|
|
Display
|
LCD
|
||
|
Range
|
0%~100%
|
||
|
Resolution
|
0.1
|
||
|
Accuracy
|
±2%
|
||
|
Sample Thickness
|
<<18 mm/0.7 inch
|
<<10 mm/0.4 inch
|
|
|
Light Source
|
LED
|
||
|
Measuring Mode
|
Single / Continuous
|
||
|
Operating Conditions
|
Temperature:0ºC~50ºC Humidity:,90%
|
||
|
Power Supply
|
4x1.5V AAA(UM-4)Battery
|
||
|
Size
|
Main Unit
|
126mmx65mmx27 mm
|
126mmx65mmx27 mm
|
|
Sensor
|
125mmx38mmx38 mm
|
------
|
|
|
Weight
|
100g (Not Including Batteries)
|
||
|
Standard Accessories
|
Main Unit
|
||
|
Testing Block
|
|||
|
Carrying Case(B04)
|
|||
|
Operation Manual
|
|||
|
Opyional Accessories
|
USB Data Cable with Software
|
||
|
Bluetooth Data Adapter with Software
|
|||
