Wall mount ultrasonic flowmeter

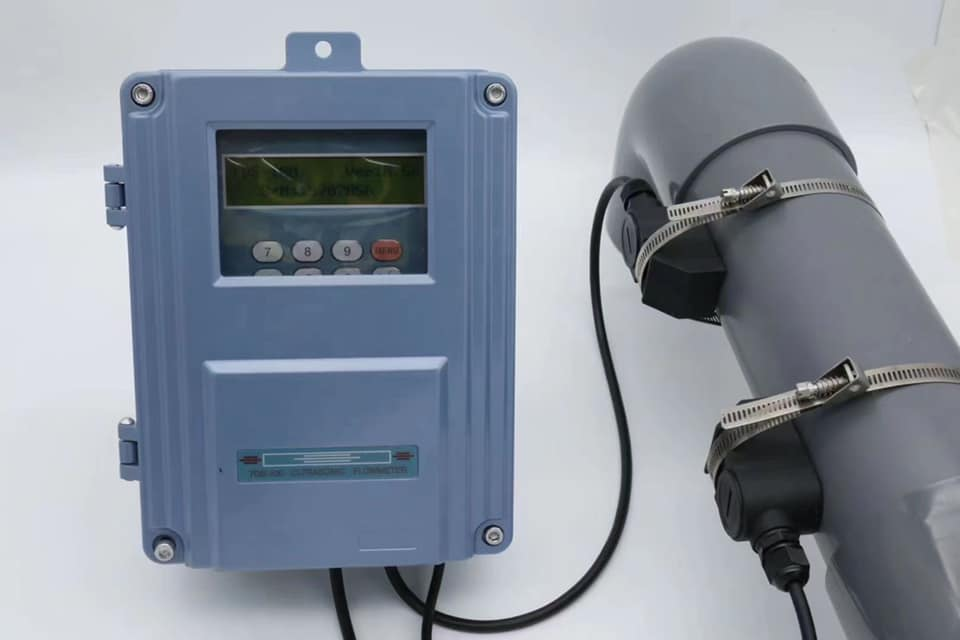

DTI-100F wall mount ultrasonic flow meter

The specifications of our Fixed ultrasonic flow meter
Measuring Principle	Ultrasonic wave transmission time difference principle, dual CPU working in parallel, 4-byte floating-point operations
Accuracy	Better than ± 1.0 %
Repeatability	0.2%
Velocity	0.03-± 32 m/s
Measurement Period	0.5S
Display	Backlit LCD can display 2x20 letters instantaneous flow, cumulative flow, velocity, time, calories and other data signal output at the same time etc.
Keypad	4x4-key membrane keypad with tactile feedback
Input	Can input two current signals(such as: temperature, pressure, liquid level, etc. signals ) in order to achieve heat measurements or a dual-purpose machine
Output	Electric current signal 4-20mA or 0-20mA, etc. RS 485 Impedance 0 - 1K, accuracy 0.1%
Isolated OCT output	For frequency output (0-9, 999Hz)
Internal Alarm (Buzzer)	User programmable
External Alarm Driver	Alarm signal can be transmitted to Relay or OCT output terminals to drive an externa alarm.
Data Interface	RS-232 serial port.
Power	AC: 220V DC: 8~36VDC or AC7-30V
Power Consumption	< 2W
Work time	Continuous
Environment Temperature	-30-80 Degrees Celsius
Environment Humidity	85% RH
