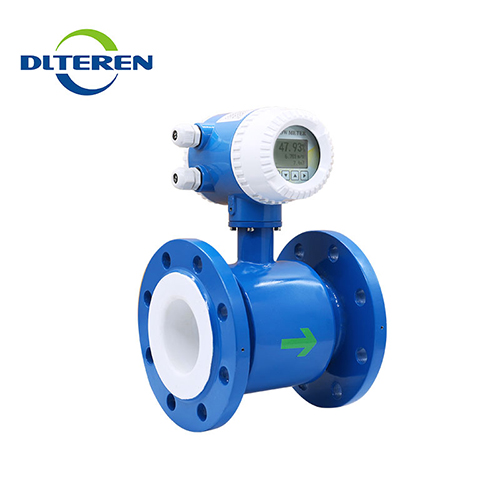

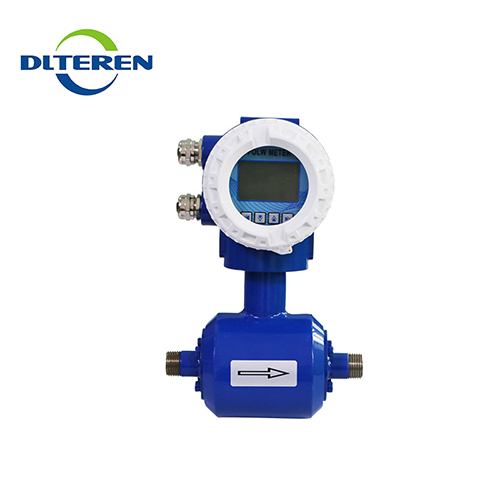

Electromagnetic Flowmeter

  • High performance no pressure loss electromagnetic flow meter measuring instruments china
  • High performance no pressure loss electromagnetic flow meter measuring instruments china
  • High performance no pressure loss electromagnetic flow meter measuring instruments china
  • High performance no pressure loss electromagnetic flow meter measuring instruments china
High performance no pressure loss electromagnetic flow meter measuring instruments chinaHigh performance no pressure loss electromagnetic flow meter measuring instruments chinaHigh performance no pressure loss electromagnetic flow meter measuring instruments chinaHigh performance no pressure loss electromagnetic flow meter measuring instruments china

High performance no pressure loss electromagnetic flow meter measuring instruments china

  • Electrode:316L
  • Lining:PTFE, CR, PFA, PU,F46 , etc.
  • Accuracy:0.5% 0.2%
  • Output:4-20mA /RS485/Modbus
  • Product description:
  • INQUIRY


The DTIE series electromagnetic flowmeter is a new generation of all intelligent flowmeter developed by our company based on Faraday electromagnetic induction principle.The measurement accuracy is not affected I by the temperature, density, viscosity and conductivity of the measuredmedium (> 5 s/cm).The electromagnetic flowmeter can not onIy measure thevolume fIow of the conductive liquid, but also can be used to measure thevolume fIow of the liquid and solid liquid solid two phase suspended liquid,such as strong acid and strong alkali and other corrosive liquid and mud





Materials

Corrosion resistance

316L

Application

1.Domestic water, industrial water, raw water, well water and urban sewage.

2.Weakly corrosive acid, alkali, salt solution.

Hart alloy B

Application

1.Non oxidizing acid such as hydrochloric acid (concentration less than 10%).

2.Sodium hydroxide (concentration less than 50%), all concentrations of ammonium hydroxide solution.

No application

Nitric acid.

Hart alloyC

Application

1.Nitric acid such as chromic acid and sulfuric acid mixed solution.

2.Oxidizing salts such as Fe+++, Cu++.

No application

Hydrochloric acid.

Titanium

Application

1.Salt, such as: (1) chloride (chloride / magnesium aluminum / calcium / iron, etc.) sodium salt, potassium salt, hypochlorite, sea water.

2.The concentration is less than 50% potassium hydroxide, hydroxide amine, barium hydroxide alkali solution.

No application

Hydrochloric acid, sulfuric acid, phosphoric acid, hydrofluoric acid and other reducing acids.

tantalum

Application

1.Hydrochloric acid (concentration is less than 40%), dilute sulphuric acid and concentrated sulfuric acid (excluding fuming sulfuric acid).

2.Chlorine dioxide, ferric chloride, hypochlorite, sodium cyanide, lead acetate, etc.

3.Nitric acid (including fuming nitric acid) and other oxidizing acids, the temperature below 80 degrees of aqua regia.

No application

Alkali, hydrofluoric acid.

platinum

Application

Almost all acid, alkali and salt solutions (including fuming sulfuric acid, fuming nitric acid).

No application

Aqua regia, ammonium salt.

tungsten carbide

Application

Almost all acid, alkali and salt solutions (including fuming sulfuric acid, fuming nitric acid).

No application

Aqua regia, ammonium salt.



Materials

Main performance

Scope of application

Polyfluoroethylene propylene (FEP/F46)

It has the unique corrosion resistance of PTFE, and has strong adhesion to metal and has excellent negative pressure resistance.

1. < 160 degrees C.

2. Strong corrosive medium such as acid, alkali, salt and so on.

3. Health media.

4. Caliber range: DN10-500.

Chloroprene rubber

CR/Neoprene

1. Excellent elasticity, high strength breaking force and good abrasion resistance.

2. Resistance to low concentration of acid, alkali and salt corrosion.

1. < 160 degrees C.

2. Tap water, industrial water, sea water, sewage, mud and pulp.

3. Caliber range: DN10-2200.

TeflonPTFE/F4

1.The chemical properties are very stable. It can resist boiling hydrochloric acid, sulfuric acid, nitric acid and aqua regia.

2. Poor wear resistance and poor cohesiveness.

1. < 160 degrees C.

2. Strong corrosive medium such as acid, alkali, salt and so on.

3. Health media.

4. Caliber range: DN10-500.





Q:How long will you get our reply?
A: We will contact you as soon as possible but within 12 hours.

Q: What certificates do we have ?
A:We have the certification of ISO,CE and SGS etc.,we could send them to you by email.

Q:How is the price?

A:As we believe the quality is the most important,we will provide the best quality with reasonable price.

Q:Could you provide me the shortest lead time?
A:We have inventory for standard models. Please tell me your detailed requirements, we will send to you as early as we can.

Q: How soon can we arrange your production?
A: Once getting your product confirmation and receiving your payment, we will arrange the production immediately.

Q:In what area can your products be used?
A:Teren ultrasonic flow meters and ultrasonic water meters are widely applicable to water supply and drainage,industrial process control,sewage and plant effluent treatment,agricultural irrigation,etc.

Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 7-15 days , it is according to quantity and your requirements.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample but not free charge.
